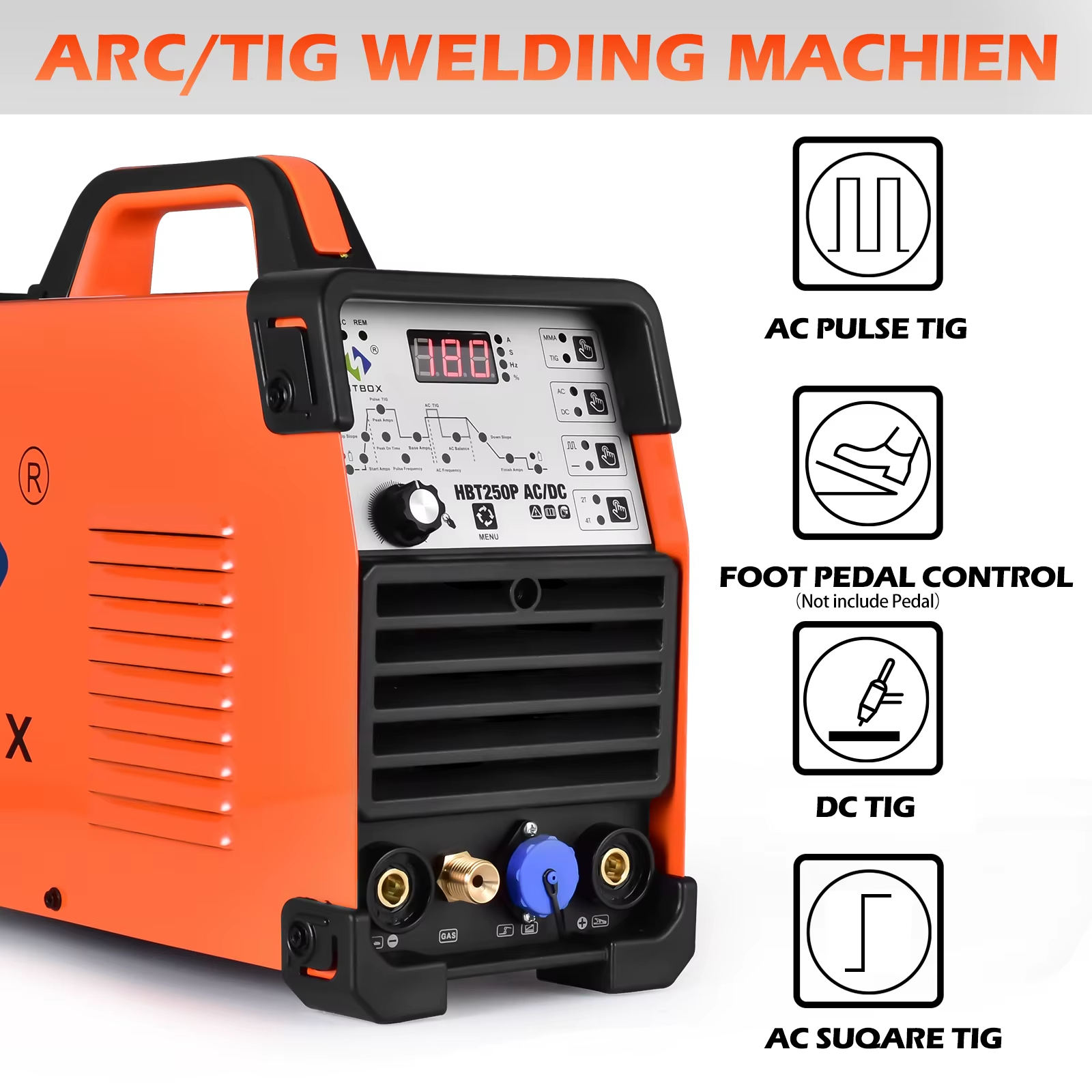

HITBOX 200A 6-in-1 High Frequency TIG AC/DC Aluminum Welding Machine

200Amp Tools IGBT Inverter 2T 4T soldador With Pulse

Description:

1.The welding machine has the most advanced inverter technology.

2.Welding power source can offer stronger, more concentrated and more stable arc.

3.When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder

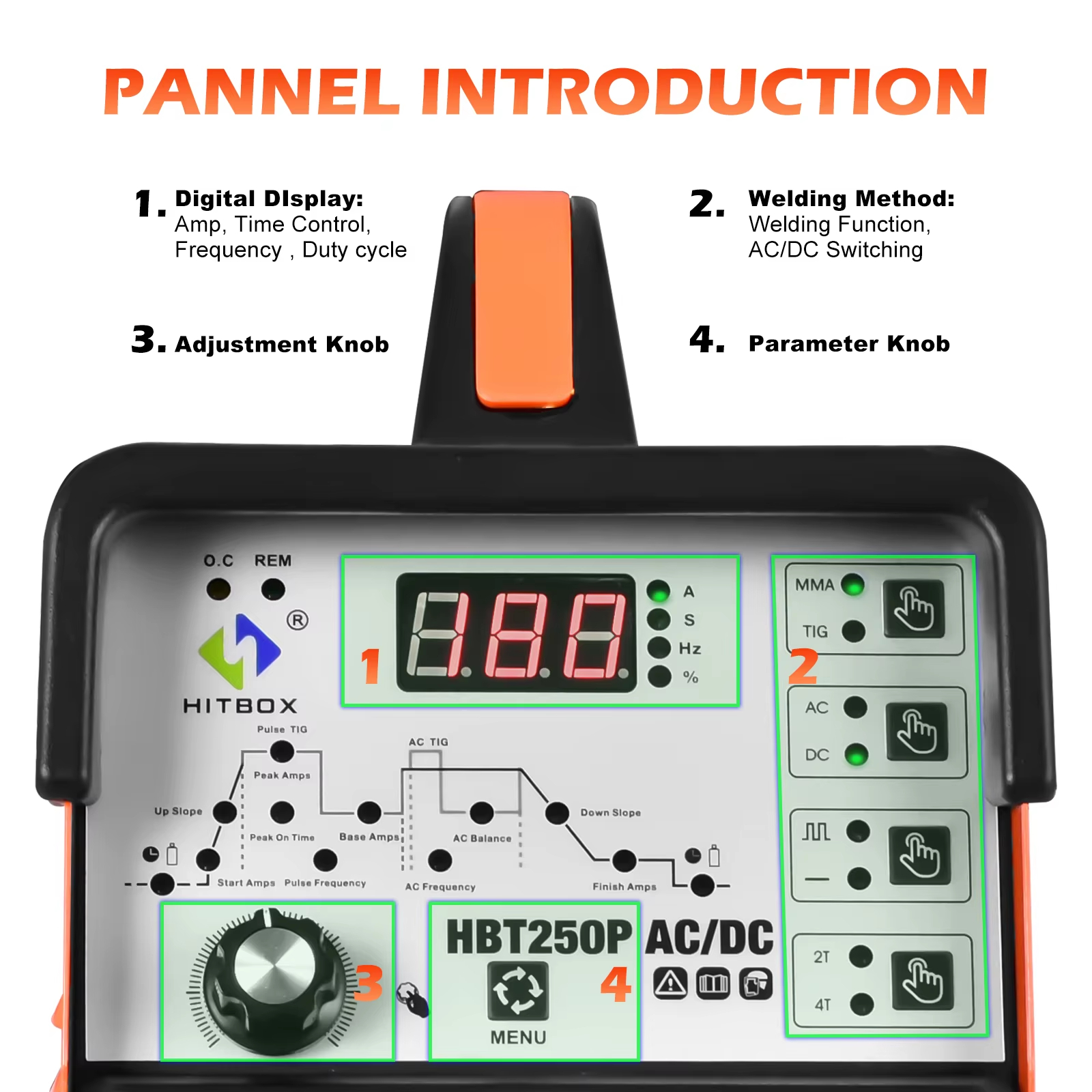

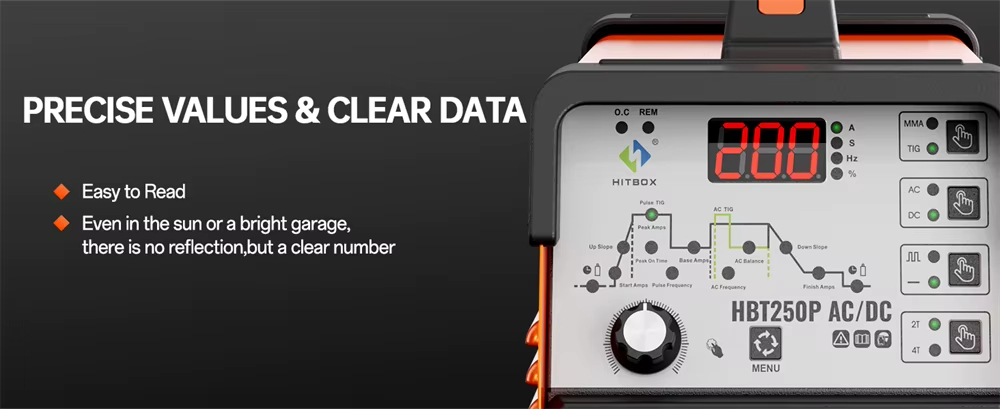

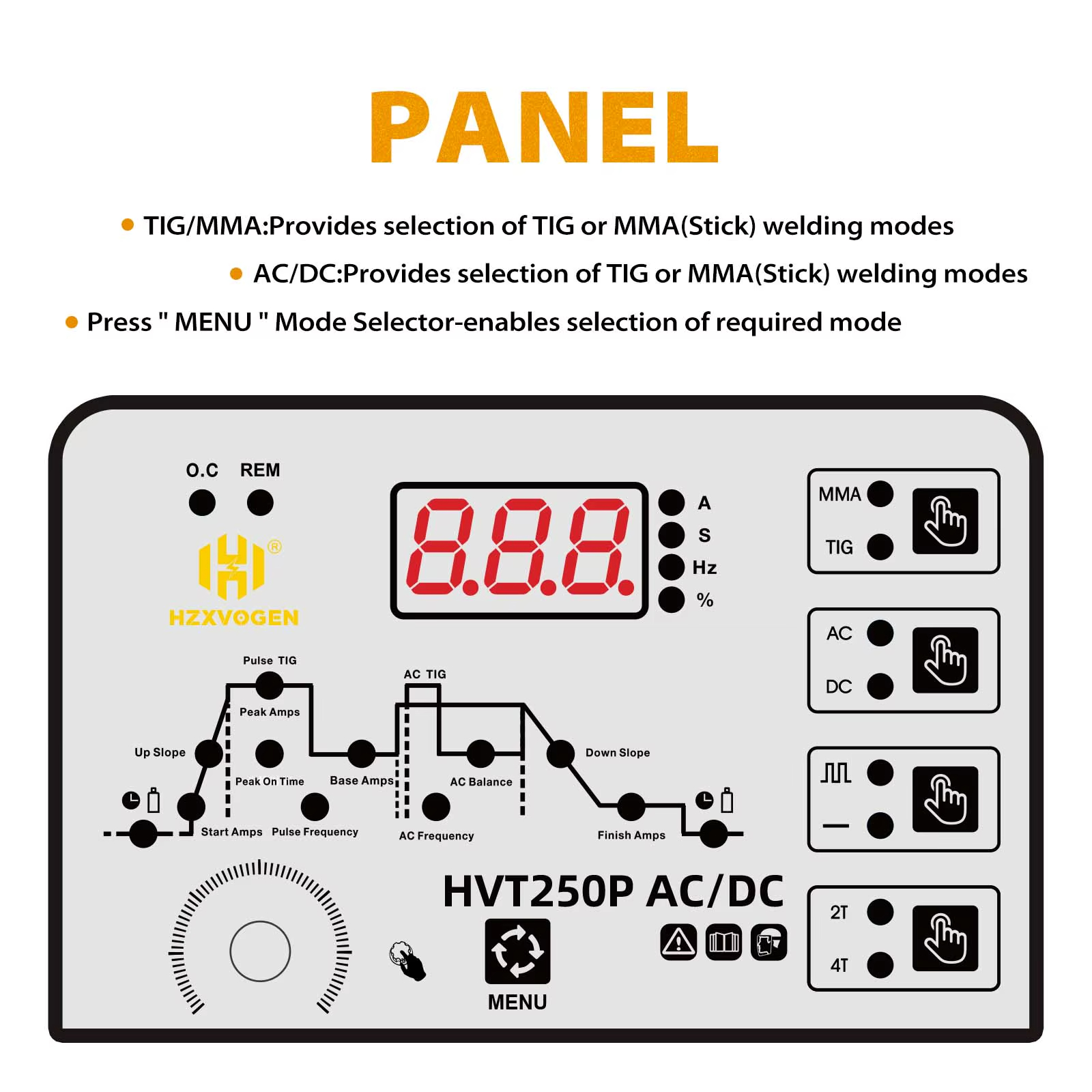

4.TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, contin?uous adjustment What’s more, pulse frequency and pulse duty can also be adjusted independently It has the

characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for

shape and inner quality of the welding surface.

5.The machine can be for multi-use, and can weld stainless steel, carbon steel, copper and other color metal,

and also can use for traditional electric welding

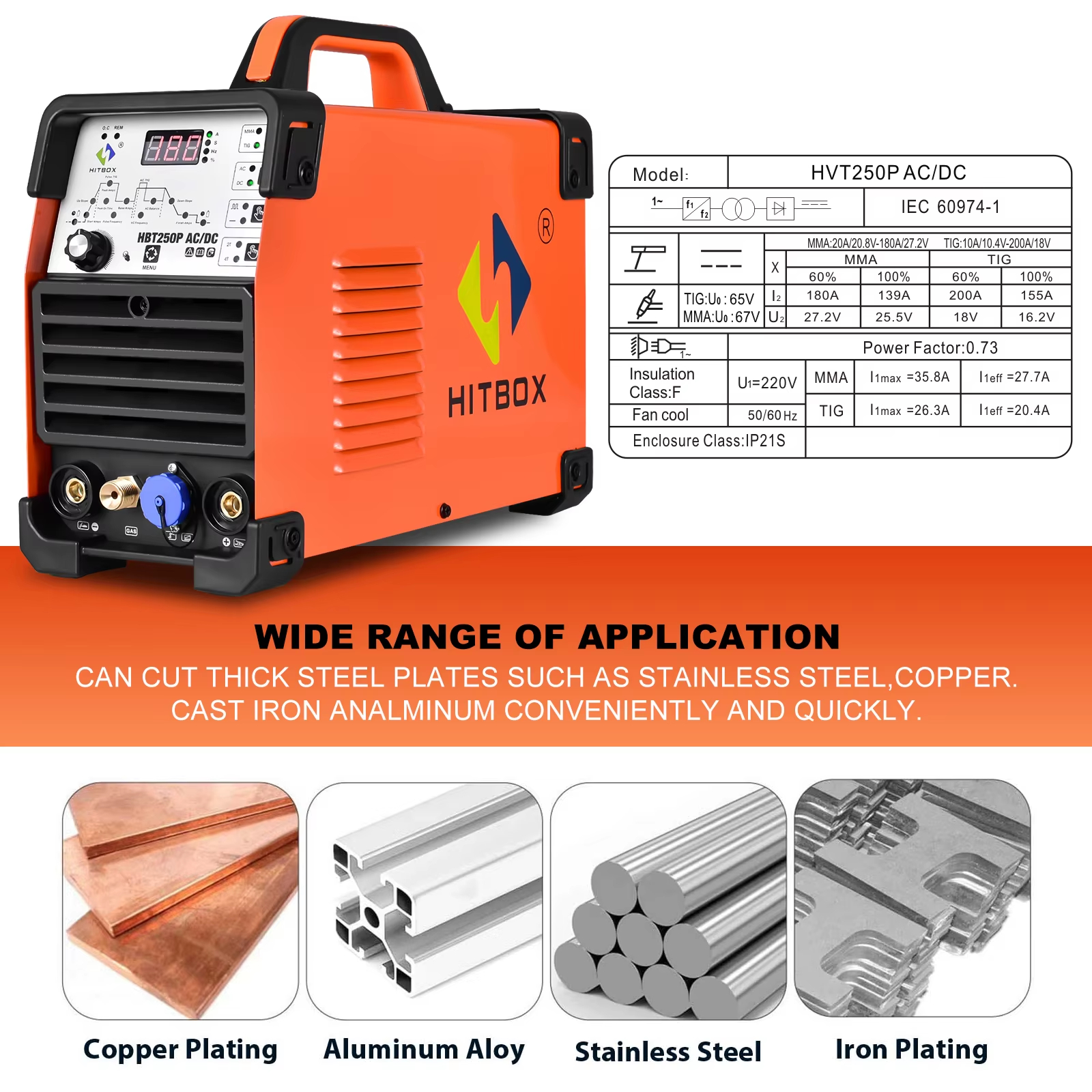

Specifications:

Brand name: HITBOX

Model:HBT250P ACDC

Rated Input Voltage(V) :AC110V/220V:10%,50/60Hz

Rated Input Power(KVA)5.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10-200

MMA/ARC Output Current(A):20-180

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

Welding process :AC DC TIG/ARC

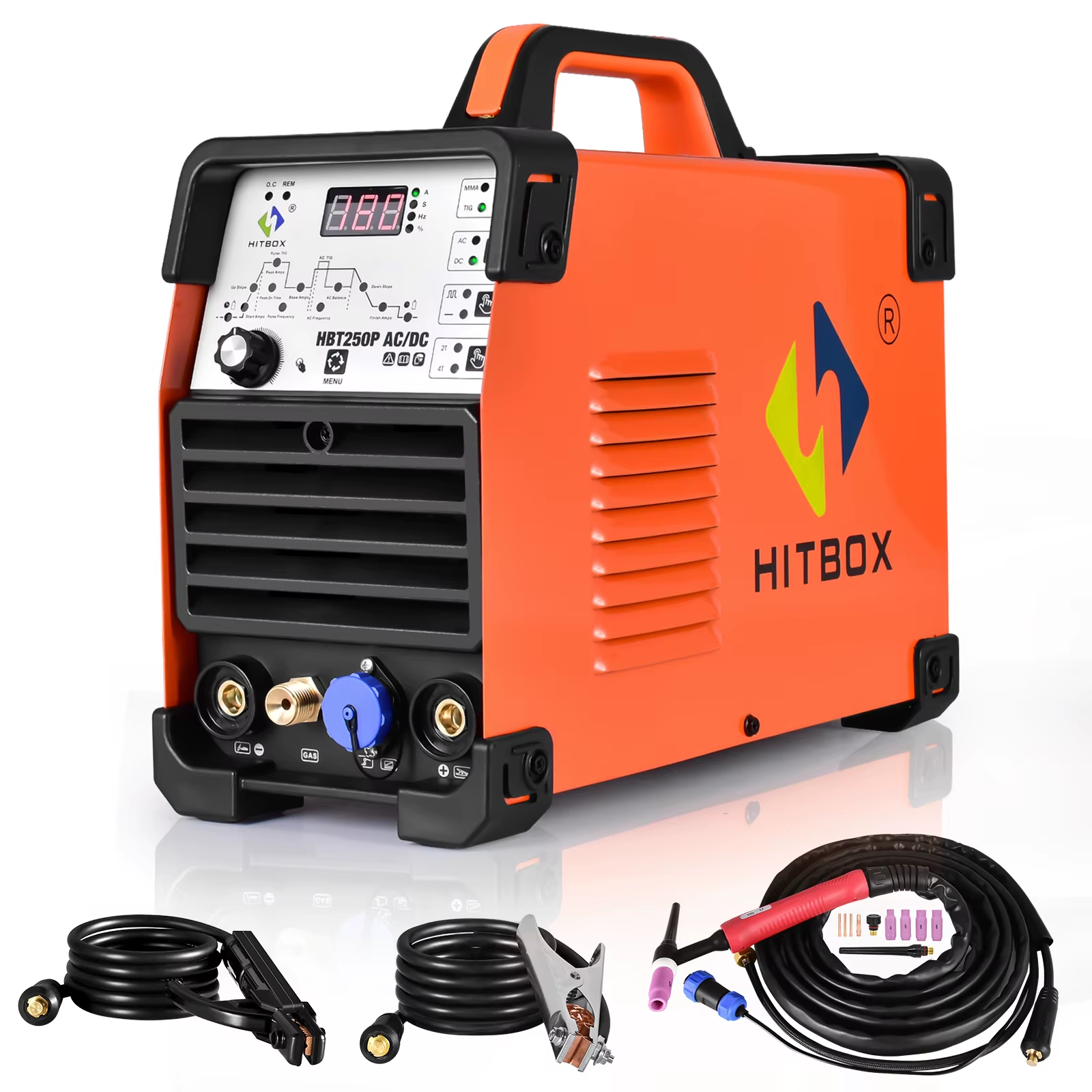

Package Content 1:

1* TIG Welding Machine

1* 17V Tig torch

1* Electrode holder

1* Earth clamp

1* Pack of tips and nozzles

2* Tungsten Electrodes

1* Manual

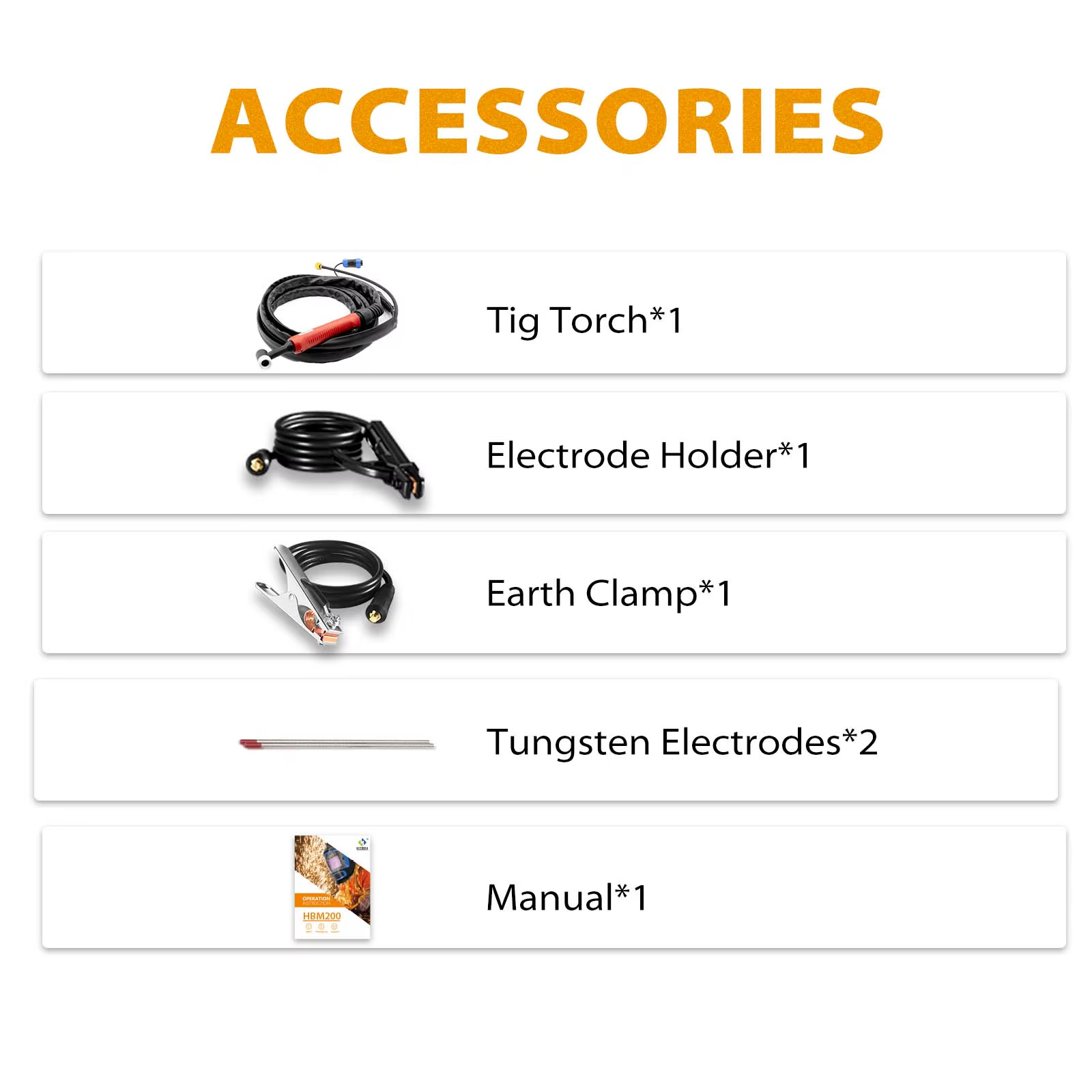

Package Content:

1* TIG Welding Machine

1* 17V Tig torch

1* Electrode holder

1* Earth clamp

1* Pack of tips and nozzles

2* Tungsten Electrodes

1* Foot Pedal

1* Manual
